A maintenance engineer opens a heat exchanger during a planned shutdown and finds the stud bolts corroded beyond the point where they can be reused.

A replacement order goes in that day. The lead time for the required alloy grade is 18 weeks. The shutdown window is 3. The situation was avoidable. It happens anyway, with a frequency that should surprise people outside the industry and does not surprise anyone inside it.

Why Fasteners Are Always the Last Item in Turnaround Planning

The unit cost of fasteners is low relative to equipment, valves, and vessels. That alone explains why they do not appear in the budget conversations that happen 6 and 12 months before a turnaround. They show up in scope only after the equipment list is finalized, which typically happens 8 to 12 weeks before the shutdown.

For standard grades, that timing is manageable. For specialty alloys, it is not.

The inspection data that would predict fastener condition, covering corrosion rates, previous heat cycles, and bolt stretch history, often does not exist or is not reviewed until shutdown planning is already underway. By the time someone asks how many studs are being replaced, the procurement window has already closed.

The Real Lead Time Picture

Standard grades (A193 B7, A194 2H nuts) in common sizes are typically available from regional stock within days to two weeks. This is the category that distorts everyone’s expectations about fastener lead times.

Large-diameter standard grades of 1.5 inches and above run 8 to 12 weeks, depending on quantity and whether heat treatment to the specific grade is required from the mill.

Specialty alloys, including Inconel 718, Monel K500, and Super Duplex S32750, run 16 to 26 weeks from mill order. These are not items that get warehoused in volume anywhere in the regional supply chain. They are made to order.

What Correct Planning Actually Looks Like

At 24 to 28 weeks before the turnaround, review maintenance records and previous inspection data to identify likely fastener replacement scope. Confirm whether any specialty alloy grades are involved.

At 20 to 24 weeks out, place orders for specialty alloys. That is not a conservative position. That is the correct one.

At 12 to 16 weeks out, order large-diameter standard grades. Smaller standard grade fasteners can wait until 8 weeks out if required. At 4 to 6 weeks out, conduct a pre-shutdown inspection on the bolted joints within planned scope and verify replacement quantities against what the inspection finds.

The Cost of Starting Late

Air freight on specialty alloy fasteners ordered under emergency conditions adds 30 to 60 percent to unit cost, before accounting for any premium charged for faster manufacturing. Turnaround delay costs in a Saudi refinery or petrochemical plant are measured in lost production, and even a partial delay has consequences that dwarf the cost of a correct procurement timeline.

Using an available but incorrect grade because the right one was not ordered in time is a decision that no plant quality system should allow. The option to wait rarely exists once the shutdown has started.

Turnaround planning disciplines work well in every category that gets taken seriously. Fasteners consistently fall into the afterthought category. The fix is straightforward: add fastener scope review to the turnaround planning milestone at week 24. That single change removes a consistent source of emergency spend and schedule risk from every planned shutdown that follows.

Canyon Engineering stocks standard grades and manages specialty alloy procurement for turnaround and planned maintenance programs across Saudi Arabia. Contact the team at info@canyon.com.sa well ahead of your next shutdown window.

FAQs

Q1: How early should I order specialty alloy fasteners for a planned shutdown in Saudi Arabia?

Place orders 20 to 24 weeks before your turnaround date. Specialty alloys such as Inconel 718, Monel K500, and Super Duplex S32750 are manufactured to order and carry lead times of 16 to 26 weeks. Regional stock does not exist for these grades in meaningful quantities.

Q2: What are the lead times for standard fastener grades like A193 B7 in Saudi Arabia?

Common sizes in standard grades are typically available from regional stock within days to two weeks. Large-diameter standard grades (1.5 inches and above) run 8 to 12 weeks depending on quantity and heat treatment requirements.

Q3: What happens if specialty fasteners are ordered too late for a turnaround?

Air freight under emergency conditions adds 30 to 60 percent to unit cost, on top of any premium for expedited manufacturing. If correct fasteners cannot arrive in time, the options are to delay the shutdown or use an incorrect grade. Neither is acceptable in a Saudi refinery or petrochemical environment.

Q4: When should fastener scope be reviewed in the turnaround planning process?

At 24 to 28 weeks before the shutdown. Review maintenance records, inspection data, and previous heat cycle history at that milestone to confirm whether specialty alloy grades are involved. Waiting until the equipment list is finalized at 8 to 12 weeks is too late for anything beyond standard grades.

Q5: Can fastener quantities be adjusted after an order is placed for a turnaround?

In most cases, a modest quantity increase can be accommodated at 4 to 6 weeks out, after the pre-shutdown inspection confirms replacement quantities. Significant increases at that stage are harder to fulfill for specialty alloys. The pre-inspection step exists precisely to catch discrepancies while there is still time to act.

Saudi Arabia’s Vision 2030 program is reshaping how industrial projects are built and sourced across the Kingdom. For contractors working on major projects, one requirement is becoming more important with every passing year: IKTVA compliance.

If you are bidding on contracts in Saudi Arabia, understanding IKTVA is no longer optional.

What Is IKTVA?

IKTVA stands for In-Kingdom Total Value Add. It is a program created by Saudi Aramco to measure how much value a contractor or supplier adds inside Saudi Arabia. The goal is simple: keep more economic activity, jobs, and manufacturing within the Kingdom.

Every supplier and contractor working with Aramco receives an IKTVA score. This score is calculated based on several factors, including how much of your workforce is based in Saudi Arabia, how much of your spending goes to Saudi-registered companies, and how much of your products are actually made inside the Kingdom.

A higher IKTVA score improves your standing with Aramco and other major Saudi clients. A low score can put your contracts at risk.

Why Fasteners Matter More Than You Think

Fasteners are small items. Bolts, nuts, studs, anchor bolts, and similar hardware rarely appear at the top of a procurement checklist. But they appear on almost every bill of materials for industrial and construction projects. The total value adds up quickly across large-scale work.

When you source fasteners from outside Saudi Arabia, that spend does not contribute to your IKTVA score. When you source from a locally based manufacturer, it does. This means that switching to a Saudi-made fastener supplier is one of the more straightforward ways to raise your score without changing your project design or supply chain structure.

For EPC contractors and procurement teams working on Vision 2030 giga-projects, the fastener category is one of the easiest places to improve local content performance, especially when the quality and delivery standards can be met locally.

Canyon Engineering: A KSA-Based Manufacturer

Canyon Engineering is a Saudi Arabian company that manufactures and supplies industrial fasteners and related equipment from within the Kingdom. As an IKTVA-compliant industrial supplier in KSA, Canyon provides contractors with a direct path to improving their local content score without sacrificing product quality or project timelines.

Canyon’s product range covers the types of fasteners used across oil and gas, power, construction, and industrial sectors. Because manufacturing and supply operations are based inside Saudi Arabia, purchases from Canyon contribute directly to a contractor’s IKTVA score.

Sourcing IKTVA-compliant fasteners in Saudi Arabia from a local manufacturer like Canyon also reduces the risks that come with international supply chains: longer lead times, customs delays, and currency exposure.

The Practical Takeaway

Vision 2030 is raising the bar for local content across every sector. Contractors who plan their supply chains with IKTVA in mind from the start will be better positioned on future bids.

Fasteners are a good place to start. The savings in compliance risk alone are worth reviewing your current supplier list.

To learn more about Canyon Engineering’s product range and IKTVA-compliant supply options, reach out to the team directly at info@canyon.com.sa.

Frequently Asked Questions

Is Canyon Engineering an Aramco IKTVA-compliant fastener supplier?

Yes. Because Canyon Engineering manufactures inside Saudi Arabia, purchases made through Canyon count toward a contractor’s IKTVA score. For companies supplying Aramco or working within its contractor network, this is a direct and practical way to improve local content performance on fastener spend, without changing product specifications or project design.

How do I find reliable fasteners suppliers in Saudi Arabia that also support my IKTVA position?

Look for suppliers who manufacture inside the Kingdom, not just those who import and resell. A locally based manufacturer contributes to your In-Kingdom Value Add score, while an importer does not, even if they hold a Saudi commercial registration. Canyon Engineering manufactures in-country and can provide the documentation needed to support your IKTVA reporting.

We are based in Riyadh. Can we still source IKTVA-compliant fasteners locally?

Yes. Canyon Engineering supplies contractors and procurement teams across Saudi Arabia, including Riyadh. Local sourcing from a Saudi manufacturer like Canyon supports your IKTVA score regardless of where your office or project is based.

Our project is in Dammam and the Eastern Province. Does Canyon Engineering serve this region?

Yes, and this region is particularly relevant given the concentration of oil and gas, petrochemical, and industrial construction activity there. Canyon Engineering works regularly with contractors and procurement teams in Dammam and the wider Eastern Province, supplying fasteners suited to the types of projects common in the area.

What kinds of fasteners does Canyon Engineering supply for Vision 2030 projects?

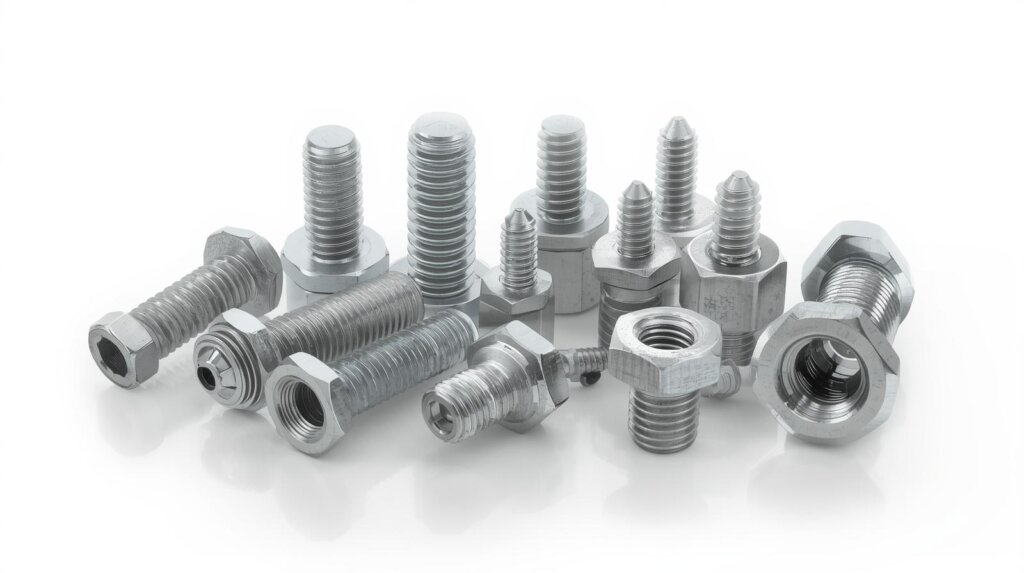

Canyon Engineering supplies a full range of industrial fasteners, including anchor bolts, stud bolts, bolts, nuts, and washers, in the grades and specifications required for construction, oil and gas, power, and heavy industrial projects. These are the same fastener categories that appear across most Vision 2030 giga-project bill of materials.

We need anchor bolts for a large foundation contract in Saudi Arabia. Can Canyon help?

Yes. Canyon Engineering is an anchor bolt supplier in Saudi Arabia with the ability to produce to project-specific dimensions and load requirements. Because these are manufactured locally, they also contribute to your IKTVA score, which matters if your project falls under Aramco or other Vision 2030 procurement frameworks.

Do you supply anchor bolts for projects specifically in Dammam?

Yes. Canyon supplies anchor bolts to project sites in Dammam and across the Eastern Province. Given the scale of energy and industrial construction in the region, Canyon has direct experience supporting the procurement requirements of projects based there.

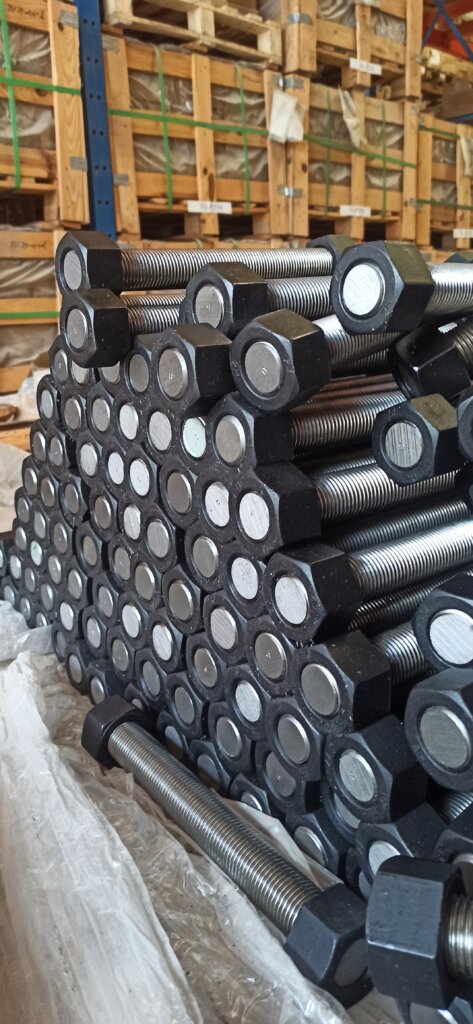

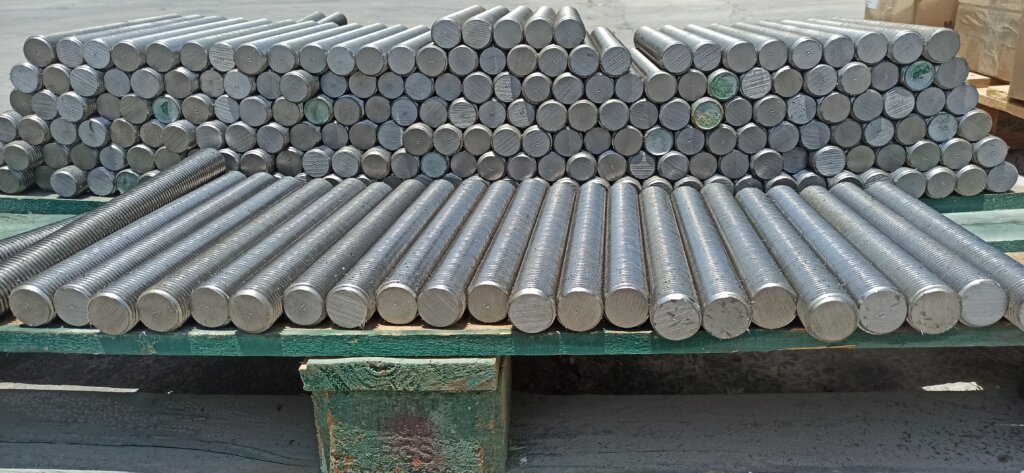

We require stud bolts for a piping and flanges scope in Saudi Arabia. Is Canyon a suitable supplier?

Yes. Canyon Engineering is a stud bolt supplier in Saudi Arabia serving the oil and gas and process plant sectors. Stud bolts are manufactured to the required material grades and dimensional standards, and sourcing them through Canyon supports your local content position at the same time. Reach out to the team at info@canyon.com.sa for project-specific requirements.

Fasteners are not something most people think about. Even many engineers give them little attention beyond checking that a bolt or nut meets the required specification.

Yet fasteners are among the few components that appear in every single machine, structure, and system! From industrial plants and pipelines to heavy equipment and infrastructure projects, fasteners are present everywhere.

That is why we argue that every technical or commercial decision-maker involved in industrial projects should think more about fasteners. A recent analysis of Canyon Engineering’s sales data revealed that the biggest reason customers switched to us was that low-quality fastener purchases from unreliable vendors were approved during the planning stages, resulting in regulatory problems down the line.

Fasteners are the literal points of connection. They hold together steel, concrete, rotating machinery, pressure systems, and load-bearing structures. They are present at the most critical stress points, often out of sight, doing their job quietly for years.

Their size may be small, but their role is fundamental, so underestimating them can turn out to be a costly mistake to make.

The quality of fasteners influences a project from the earliest stages. Long before commissioning or operation begins, fastener selection affects installation integrity, inspection outcomes, and long-term reliability. Poor-quality fasteners introduce risk at the point where materials meet, and that risk can thus remain embedded in the asset for its entire service life.

The Role Fasteners Play in Industrial Performance

Fasteners operate at critical stress points. They are exposed to load, vibration, temperature variation, moisture, chemicals, and mechanical movement. Their performance affects structural stability, alignment, and the ability of systems to maintain integrity over time.

In oil and gas, construction, power generation, and infrastructure, fasteners directly support safety and compliance. A compromised fastener can weaken an entire assembly.

Since factories, workshops, machinery, and structures often undergo mandatory company-level, institutional, and government checks, poor-quality fasteners can cause the structure to fail in these regulatory and safety tests, resulting in fines, reputational damage, costly corrective actions, and even jail time.

Site teams regularly encounter fasteners that fail corrosion tests, do not meet coating requirements, or lack proper certification. When this happens during installation or commissioning, work slows down or stops altogether. Replacement materials must be sourced, and sometimes additional inspections are required. The issue often spreads beyond the fastener itself and affects schedules, coordination, and confidence in the supply chain.

All of this thanks to a small component that was assumed to be normal and not very important.

Cost Decisions Made Too Early

Fasteners do not feature prominently in project presentations or design discussions, yet they carry responsibility at every joint, interface, and load-bearing point.

Fasteners are frequently treated as interchangeable commodities. Procurement decisions are often driven by unit price, availability, or speed of supply. While these factors matter, they should never outweigh quality, traceability, and suitability for the operating environment.

The cost difference between a certified, well-manufactured fastener and a lower-grade alternative is usually marginal at the time of purchase. The cost difference after installation can be substantial. Maintenance interventions, premature replacement, or remedial work introduce expenses that were never accounted for at the outset.

More importantly, these issues consume time and attention from teams that should be focused on delivery and operations. The true cost of poor fastener selection makes itself evident in the form of disruption, rework, and long-term risk exposure.

Treating fasteners with appropriate seriousness is a matter of professional judgment. It reflects an understanding that reliability is built into a project through thousands of small decisions, not a few large ones.

Ignoring this reality places unnecessary strain on projects and operations. Acknowledging it leads to better outcomes.

Why Standards and Certification Matter

Fasteners used in critical applications must meet recognized standards and be supported by proper documentation. Major operators and regulatory bodies enforce these requirements because connection points are known sources of failure when quality is inconsistent.

Organizations such as Saudi Aramco apply strict criteria to fasteners used within their facilities, and compliance with such rules is not optional. Materials must meet defined specifications, coatings must perform under environmental conditions, and traceability must be maintained.

Using fasteners that align with these expectations reduces risk during inspection, operation, and maintenance. It also demonstrates professionalism and accountability across the supply chain.

Canyon’s Approach to Fasteners

At Canyon Engineering, fasteners are critical components, not secondary items. The company sources fasteners from reputable manufacturers and applies strict quality controls to ensure consistency, reliability, and compliance with recognized standards.

This approach supports long-term performance for our own engineering projects and those of our customers who source their fasteners from us.

Our High-quality fasteners maintain integrity under demanding conditions and reduce the likelihood of corrosion, loosening, or premature failure. Over time, this leads to fewer interventions, lower maintenance exposure, and greater confidence in installed assets.

Canyon’s focus on documentation, traceability, and alignment with leading industry standards also supports smoother inspections and approvals.

Why Canyon?

Canyon Engineering supplies high-quality fasteners sourced from trusted manufacturers and held to strict quality standards aligned with those followed by leading organizations such as Saudi Aramco.

If you require reliable fasteners for industrial, construction, infrastructure, or other commercial applications, we are always here for you. Contacting us is easy, just drop a message to us on LinkedIn or submit an inquiry by email at info@canyon.com.sa

Our team of experts will always assist you in selecting dependable, certified fasteners appropriate for your requirements.

Because when everything depends on what holds it together, quality should never be an afterthought.

Your Thoughts

Have you encountered fastener-related issues during inspections or commissioning? Let us know. We look forward to hearing from you!

Use Case 5
Industry: Defense Industry
Product:

Defense & Automotive (Military Vehicles and Heavy Equipment)

Product

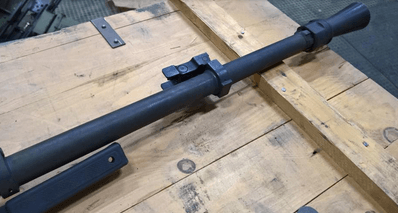

External and Internal Nanoprotection for Hand Grenade Launchers (RBG 40/6 M11)

• Advanced anti-friction, anti-wear, and heat-resistant protection designed for barrels and critical weapon components.

• Challenge: Barrel wear and abrasion represent one of the most persistent problems in grenade launchers and other large-caliber weapon systems. Without advanced protective measures, barrels degrade quickly under extreme firing conditions, reducing accuracy, increasing maintenance costs, and requiring frequent replacement.

Problem:

Defense stakeholders faced several recurring issues with hand grenade launchers and similar weapon systems:

• Excessive friction and wear accelerated the deterioration of internal barrel surfaces.

• Abrasion and heat stress from repeated firing cycles compromised structural integrity.

• Lack of effective long-term coatings led to shorter barrel life, more frequent downtime, and higher operational costs.

• Conventional surface treatments could not meet the evolving performance requirements of modern combat environments.

Solution

Canyon Engineering provided both the technical materials and professional expertise required to apply advanced nanotechnology-based anti-friction, anti-wear, and heat-resistant coatings.

At the start of the project, user-specific problems and operational requirements were carefully analyzed to ensure tailored solutions.

The nanoprotection technology was then applied to:

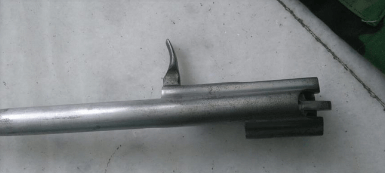

• Complete internal and external surfaces of hand grenade launchers (RBG 40/6 M11).

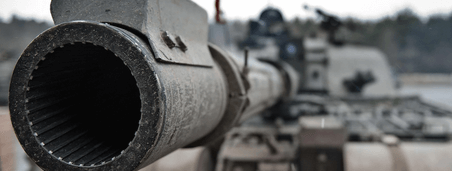

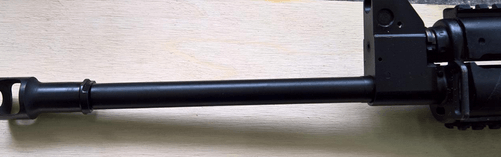

• Barrels of all calibers, including large-caliber systems, offering versatile applicability across defense platforms.

Results & Benefits

• Extended Barrel Life: Testing demonstrated that treated barrels achieved lifespans up to 80% longer than untreated counterparts.

• Abrasion Resistance: Internal barrel surfaces maintained structural integrity under high-stress firing cycles, reducing deformation and erosion.

• Heat Resistance: Coatings withstood repeated thermal stress, maintaining consistent performance even under heavy use.

• Operational Readiness: Reduced need for barrel replacements lowered logistical burdens and ensured greater mission reliability.

• Scalable Application: Technology can be adapted to a wide range of calibers, ensuring consistent benefits across diverse defense systems.

Summary

Through the integration of nanotechnology-driven external and internal protections, Canyon Engineering successfully addressed critical challenges in barrel wear, friction, and heat resistance for hand grenade launchers and large-caliber weapons.

By combining technical resources with dedicated expert personnel, the solution not only improved performance but also extended barrel life by up to 80%, delivering substantial operational and cost-saving benefits to the defense industry.

Use Case 4
Industry: Defense Industry
Product:

Defense & Automotive (Military Vehicles and Heavy Equipment)

Product

Tungsten Disulfide (WS₂) Fullerene Nanoparticles in Oil Suspension

• Advanced lubricant additive designed to improve engine efficiency, reliability, and service life.

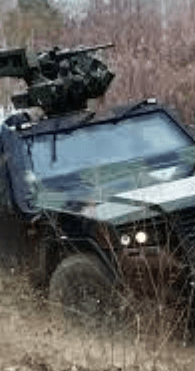

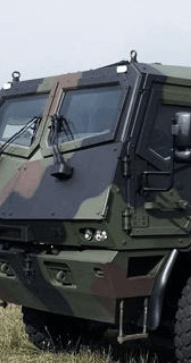

• Challenge: Military and heavy-duty vehicle engines operate in extreme environments where conventional oils and greases are insufficient to prevent wear, cold-start difficulties, and premature breakdown. Vehicle downtime due to engine degradation leads to higher operational costs, reduced reliability, and mission delays.

Problem:

Users faced multiple performance and maintenance challenges:

• High friction and abrasion in moving engine parts reduced lifespan and increased maintenance frequency.

• Cold-start difficulties in harsh environments increased operational risks and fuel consumption.

• Excessive noise and vibration during operation compromised efficiency and long-term reliability.

• Conventional lubricants provided limited protection, leading to accelerated wear and costly replacements.

Solution

Canyon Engineering introduced tungsten disulfide (WS₂) fullerene nanoparticles in oil suspension as an advanced additive to existing oils and greases. Leveraging their exceptionally low-friction, anti-abrasive, and self-healing properties, WS₂ nanoparticles formed a protective nanoscale layer between metal surfaces, reducing wear and enhancing lubrication under all operating conditions.

Results & Benefits

• Extended Lubricant Life: WS₂ nanoparticles increased lubricant lifespan by up to 50%, reducing the frequency of oil changes.

• Extended Engine Life: Engines treated with WS₂ showed significantly longer operational lifespans due to reduced wear and friction.

• Improved Power & Reliability: Vehicles experienced noticeable power gains and improved reliability across extended operating cycles.

• Safer Cold Starts: WS₂-enabled lubrication facilitated easier and safer cold starts, minimizing risk in harsh climates.

• Lower Noise Levels: Engines operated with reduced frictional noise, improving efficiency and crew comfort.

• Fuel Savings: Reduced internal friction translated into lower fuel consumption, contributing to cost savings and sustainability.

Summary

By integrating tungsten disulfide (WS₂) nanoparticle additives into conventional oils and greases, Canyon Engineering delivered a next-generation solution that significantly enhanced the performance and reliability of military and heavy-duty vehicle engines.

With measurable benefits—up to 50% longer lubricant life, extended engine durability, improved cold starts, lower noise, and fuel savings—this innovation demonstrates the transformative power of nanotechnology in the defense and automotive industries..

Use Case 3
Industry: Defense Industry
Product:

External and Internal Anti-Friction, Anti-Wear, and Anti-Corrosion Nanoprotection

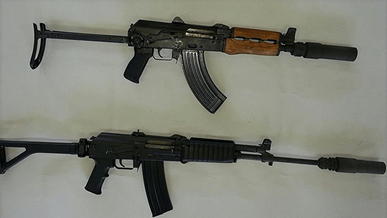

• Applied to optical and aiming device mechanisms, camouflage PUR paint (“Desert Sand”), and suppressors.

Challenge: The defense sector requires durable, reliable, and heat-resistant protective solutions that extend the operational life of critical weapon components under extreme environments. Traditional protective methods such as bluing (SORS 2348) and phosphate coating (SORS 2340) often fall short in terms of long-term corrosion resistance, especially in desert conditions where sand, heat, and humidity accelerate wear.

Problem:

Performance of LEAD BULLETS

Key operational equipment—including optical/aiming devices, camouflage-coated surfaces, and suppressors—were facing persistent issues:

• Optical and aiming mechanisms suffered from friction and wear during extended use, leading to loss of accuracy.

• Suppressors experienced heat-related degradation, corrosion, and reduced lifespan when exposed to high-temperature firing cycles.

• Conventional coatings such as bluing and phosphate provided insufficient protection against the severe climatic and operational stressors of the desert environment.

Solution

Canyon Engineering deployed nanotechnology-based anti-friction, anti-wear, and anti-corrosion nanoprotection coatings across these components.

The advanced nanocoating solution created a uniform, heat-resistant protective barrier that penetrated microstructures, drastically enhancing performance under operational stress.

Results & Benefits

• Improved anti-friction and anti-wear performance: Optical and aiming mechanisms operated with reduced resistance, extending precision accuracy and operational lifespan.

• Stable heat-resistant protection: Suppressors maintained structural integrity and performance under repeated high-heat cycles.

• Superior anti-corrosion protection: Corrosion resistance exceeded not only the required defense standards but also outperformed traditional methods such as bluing (SORS 2348) and phosphate coating (SORS 2340).

• Operational readiness in desert conditions: Camouflage PUR paint (“Desert Sand”) retained protective properties, ensuring long-lasting durability in sand-heavy, high-temperature environments.

Summary

By leveraging nanotechnology-driven coatings, Canyon Engineering successfully addressed the friction, wear, and corrosion challenges of critical defense components.

The solution delivered a measurable improvement in performance, reliability, and compliance with—and beyond—established standards, making it a proven innovation for the defense industry’s most demanding applications.

APPLICATION OF NANOTECHNOLOGY ON SPECIAL TOOLS

RESULTS

• Drawing dies for the third extraction of steel case D-52
• Punch for the third extraction of steel case D-52

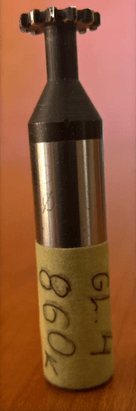

• Form drills for the production of fuze body and cartridge case positions for 23 mm ammunition
• Significant increase in tool life achieved:
• Dies and punches: up to100%
• Form drills: 50%+

INVESTIGATION OF THE POSSIBILITY OF REPLACING EXISTING ORGANIC AND INORGANIC METAL PROTECTION METHODS WITH NANOMATERIALS

RESULTS

• Treated PUR paints meet the required standards SORS 1634 and SORS 1564
• Increased hardness
• Increased impact resistance by 90% (polyurethane paint)
• Requirements for resistance to aggressive environments were satisfied
• Reflection of polyurethane camouflage black paint (organic solvent-based) treated with Nanoparticles was significantly reduced, improving camouflage properties
• Research on the effect of Nanomaterials on protective properties of individual ballistic protection equipment is ongoing

Use Case 2
Industry: Defense Industry
Product: Ultra-thin layers of fullerene nanoparticles of tungsten disulfide
Challenge: Visual inspection of revolver barrels after firing untreated bullets showed significant lead buildup in the grooves

Problem:

Performance of LEAD BULLETS

For this testing, lead bullets LRN 10.2 g, caliber 38 (.3575) were pre-treated.

Bullets were coated with ultra-thin layers of fullerene nanoparticles of tungsten disulfide, without affecting the caliber.

Two revolvers were used:

• Taurus .38 Special, barrel length 4’’
• Ruger .38 Special, barrel length 2’’

Revolvers were previously degreased and properly cleaned. Three series of 5 and 6 rounds were fired from both revolvers, with cleaning of the barrel and chamber after each series.

LEAD BULLETS – RESULTS

About 80% less lead deposit was observed in bullets coated with tungsten disulfide nanoparticles.

Visual inspection of revolver barrels after firing untreated bullets showed significant lead buildup in the grooves, while this effect was not present with treated bullets.

Untreated Rifle Test Barrel

Use Case 1
Industry: Defense Industry
Product: Nano System Black Knight 5.8
Challenge: Extended the service life of cutting tools by 42%–120%.

Problem:

In the first application cycle, an anti-friction, anti-wear, heat- resistant, and anti-corrosion Nanotechnology-based agent was used, which significantly extended the service life of cutting tools by 42%–120%.

There was also one case where tool life was extended by up to 700%.

In the second cycle, in addition to the previously used Nano System 015, a new product, Nano System Black Knight 5.8, was tested. Unlike its predecessor, it does not require thermal treatment, which significantly simplifies and reduces the cost of the protection process.

The recorded tool life extension is currently within the same range as the first cycle, although in two cases, an increase of over 300% was observed.

External Part – Barrel and Bolt of Browning .50 and Automatic Rifles

For heat-resistant, anti-friction, anti-wear, and anti- corrosion protection, the Nano System Black Knight 5.8 product was used.

Tests were conducted under rigorous operating conditions over a period of two years with standard maintenance.

The BROWNING .50has so far fired around 2,800 rounds(testing still in progress).

At the time of inspection, it was in excellent condition, with no visible signs of wear or corrosion.

Automatic Rifles

Fired 3,000, 8,000, and 16,000 rounds.

At the time of inspection, they were in flawless condition, with no visible signs of wear or corrosion.

Bolt of Automatic Rifle

Protected with Nanotechnology:

16,000 rounds fired with standard maintenance.

Unprotected with Nanotechnology: standard maintenance only

In Saudi Arabia and across the GCC, Engineering, Procurement, and Construction (EPC) projects are the backbone of Vision 2030’s giga-projects—from smart cities and renewable energy parks to logistics terminals and refineries.

But at the heart of these projects lies a critical question: can suppliers deliver the right materials, to the right standard, at the right time?

At Canyon Engineering, we’ve had countless conversations with EPC teams navigating procurement bottlenecks.

Over the years, the questions they ask us most have converged into three clear themes:

Are your fasteners traceable?
Do you supply per ISO/Aramco specs?
Can you fulfill a 500+ line BOM on time?

Our answer is simple: Yes. Yes. And Yes.
Here’s why these questions matter—and how Canyon responds.

1⃣ Traceability: From Factory to Foundation

For EPC teams, traceability isn’t a “nice-to-have”—it’s non-negotiable.

Auditors and clients require complete documentation, especially for projects funded or regulated by Saudi ministries or Aramco.

One missing MTC (Material Test Certificate) can cause weeks of delay in project execution.

Canyon’s Solution:

• QR-coded packaging links every batch of fasteners directly to digital certifications.

• Batch traceability systems align with EPC procurement checklists.

• Digital MTC archives mean engineers and inspectors can access compliance documents in real-time.

Impact: According to 2025 EPC market research, over 68% of project delays linked to materials are due to missing compliance documents.

With Canyon’s traceable fasteners, EPC teams reduce audit bottlenecks, shorten inspection cycles, and maintain momentum on-site.

2⃣ Certification: ISO, ASTM, and Aramco Standards

Every project manager knows the risks of uncertified materials: rejected shipments, costly rework, and sometimes contract penalties.

For Aramco, SABIC, and ministry-led projects, certification is not just a requirement—it’s the foundation of trust.

Canyon’s Solution:

• Full compliance with ISO, ASTM, DIN, and Aramco standards.

• Supply of Aramco-certified fasteners in KSA, approved for use in oil, gas, energy, and infrastructure projects.

• Material testing aligned with ASTM F606 tensile tests, ISO 898 property classes, and Aramco coating cycle benchmarks.

Impact: A 2024 KSA industry survey found that non-certified materials account for nearly 20% of rejected shipments in EPC supply chains.

By partnering with a certified supplier like Canyon, EPC teams eliminate this risk entirely.

3⃣ Scale: Can You Handle a 500+ Line BOM?

Mega-projects like NEOM, Red Sea Global, and Qiddiya often demand procurement packages exceeding 500 line items, including bolts, nuts, washers, studs, coatings, and custom assemblies. Coordinating multiple vendors adds complexity, risk, and delays.

Canyon’s Solution:

• Inventory of 100,000+ SKUs, covering the full spectrum of industrial fasteners in Saudi Arabia.

• Central warehousing in Al Khobar, with distribution networks across the GCC.

• Integrated Management System (IMS) that syncs with EPC project BOMs, ensuring every item is accounted for.

• Just-in-time (JIT) delivery, even to remote desert and coastal sites.

Impact: With Canyon as a single-source supplier, EPC teams reduce vendor complexity, avoid mismatched specs, and streamline project procurement cycles.

In fact, contractors working with Canyon report procurement time savings of up to 35%.

EPC FAQs: Canyon Responds

To sum up, here’s how we answer the most frequent EPC procurement questions:

Q: Are your fasteners traceable?
Yes. Every batch is QR-coded, digitally archived, and audit-ready.

Q: Do you supply per ISO/Aramco specs?
Yes. All materials meet ISO, ASTM, and Aramco compliance standards.

Q: Can you fulfill a 500+ line BOM?
Yes. With 100,000+ SKUs and IMS-driven logistics, we scale for giga-projects.

The Bigger Picture: Why This Matters for Vision 2030

Saudi Arabia’s construction and infrastructure sector is projected to grow at a CAGR of 4.5% through 2030, with EPC projects at the center of this transformation.

To meet ambitious national deadlines, procurement cannot be a weak link.

By ensuring traceability, certification, and scalability, Canyon Engineering positions itself not just as a supplier of industrial fasteners in Saudi Arabia, but as a strategic EPC procurement partner—delivering compliance, speed, and confidence.

Conclusion

In Vision 2030 projects, procurement delays equal project delays.

EPC teams demand suppliers who answer their toughest questions with reliability, compliance, and scale.

At Canyon Engineering, our message is simple: we deliver fasteners that EPC teams don’t have to worry about. Traceable. Certified. Scalable.

Because the future isn’t just built on fasteners—it’s built on confidence.

In the world of Engineering, Procurement, and Construction (EPC), success is often measured not only by design brilliance or technical execution but by time.

Schedules drive everything—from financing milestones to government approvals—and even the strongest blueprints are powerless if materials don’t arrive when needed.

Across Saudi Arabia and the GCC, where giga-projects like NEOM, Qiddiya, and The Red Sea Project are reshaping skylines, procurement delays can mean millions of riyals in cost overruns and months of schedule slippage.

In fact, recent GCC infrastructure reports show that procurement and logistics bottlenecks account for up to 35% of construction delays.

The message is clear: in fast-paced mega projects, vendor reliability isn’t a luxury—it’s a lifeline.

Canyon Engineering has made timely delivery its hallmark.

With a vendor reliability record exceeding 96%, even on high-value, large-volume fastener orders, the company has become synonymous with EPC procurement confidence.

Why Timely Procurement Is the Backbone of EPC Projects

Delays in procurement ripple across every stage of construction. A single late shipment of high-tensile bolts can halt steel erection, idle equipment, and extend manpower costs.

For EPC firms bound to aggressive schedules under Vision 2030, this is not just a nuisance but a serious contractual liability.

Key Impacts of Procurement Delays on EPC Projects:

• Lost productivity: Idle crews waiting on fasteners or fittings reduce cost efficiency.

• Extended timelines: Missing components often push back entire project phases.

• Financial penalties: Contracts with public or private entities carry steep delay clauses.

• Reputation risk: Contractors with repeated delays risk exclusion from future tenders.

By contrast, reliable procurement accelerates schedules, builds trust, and sets EPC firms apart in Saudi Arabia’s competitive infrastructure market.

Canyon’s Logistics DNA: Built for Speed and Scale

Canyon Engineering’s Integrated Management System (IMS) lies at the heart of its procurement performance.

Unlike traditional trading firms that depend on manual processes and disconnected warehouses, Canyon runs a digitally enabled supply chain that connects inventory, packaging, and delivery in real-time.

How Canyon Engineering Delivers Procurement Without Delays:

• 100,000+ SKUs in stock, including Aramco-certified fasteners, studs, nuts, and washers.

• Centralized warehousing in Al Khobar, with GCC-wide logistics integration.

• Real-time IMS dashboards providing visibility to EPC partners.

• QR-coded packaging for batch traceability, eliminating documentation hold-ups.

• Vendor performance record: 96%+ on-time delivery, even on complex BOMs.

These systems allow EPC clients to source with confidence, knowing Canyon’s supply chain is engineered for just-in-time fulfillment.

Why Vendor Reliability Matters More in 2025

Saudi Arabia’s construction ecosystem in 2025 is operating at unprecedented speed.

With more than $1.5 trillion worth of projects under execution, the pressure on procurement channels is immense.

EPC contractors cannot afford suppliers that deliver late, incomplete, or non-compliant orders.

Statistics that highlight the urgency:

• EPC procurement delays cause an average 18% cost escalation per delayed project in the GCC.

• Saudi Arabia’s industrial fastener demand hit SAR 1.3 billion in 2025, with much of it tied to Vision 2030 projects.

• Digital traceability and compliance-ready procurement are now baseline requirements for Aramco, SABIC, and Ministry-led projects.

In this environment, Canyon’s procurement reliability becomes not just an advantage—it is a differentiator.

Real-World Use Cases: Reliability in Action

Canyon’s reliability record is best illustrated through its role in critical Saudi and GCC projects:

• Oil & Gas Refineries: Fasteners rated for 600°C delivered on-time to prevent shutdown delays.

• Logistics Depots: Bulk shipments with zone-specific kitting to streamline contractor installation.

• Coastal Infrastructure: Corrosion-resistant fasteners delivered with HDG and PTFE coatings to withstand salt spray—avoiding costly reorders and rework.

In every case, Canyon’s vendor reliability reduces downtime, accelerates completion, and strengthens EPC compliance.

Strategic Partner, Not Just a Vendor

What distinguishes Canyon Engineering is not only its inventory depth but its philosophy: to act as a procurement partner, not merely a supplier.

By aligning with EPC project milestones and compliance needs, Canyon takes responsibility for ensuring that materials are where they need to be, exactly when required.

This creates a procurement ecosystem where EPC teams can focus on execution—not chasing shipments or correcting paperwork.

Conclusion: Procurement That Moves Projects Forward

In 2025, where giga-projects in Saudi Arabia and across the GCC demand speed, compliance, and reliability, procurement delays are not just costly—they are unacceptable.

Canyon Engineering’s 96%+ vendor reliability record, powered by its IMS-enabled logistics system, ensures that EPC partners receive the right fasteners, at the right time, with the right documentation.

It is more than a service; it is an assurance that projects will keep moving, schedules will stay on track, and Vision 2030 goals will be met without compromise.

When time is money—and reputation—procurement without delays is procurement done right.
